Dynamic Material Testing Machine and Static Loading System

Introduction

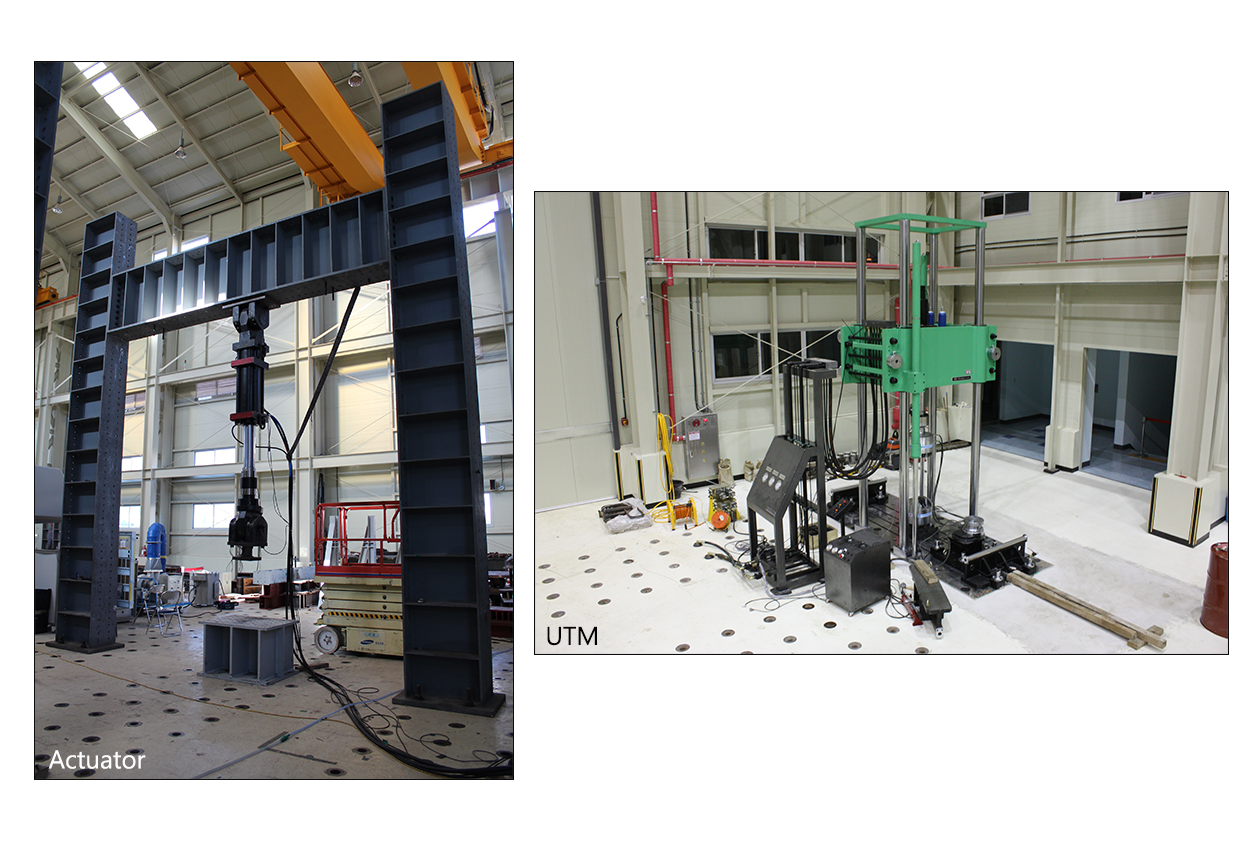

Actuators with strong floor(18 m x 12 m) and UTM(1000 kN / 250 kN) system
can be used for testing member / material in various fields of Civil structure, Machine, etc.
These system are usually controlled in displacement or force for testing tensile, compression, bending tests, etc.

Specification

보유장비 act&utm 장비사양
items Specification
Actuator
  1. 1,000 kN
    (Length : 2,970 mm, Stroke : ±250 mm, Compression Force Rating : 1,045 kN, Tension Force Rating : 667 kN)
  2. 500 kN
    (Length : 2,175 mm, Stroke : ±125 mm, Compression Force Rating : 500 kN)
  3. 250 kN
    (Length : 1,940 mm, Stroke : ±130 mm, Compression Force Rating : 250 kN)
  4. 100 kN
    (Length : 1,418 mm, Stroke : ±130 mm, Compression Force Rating : 100 kN)
1000kN UTM
  1. Size : 1,760(W)*3,500(L)*4,065(H) mm
  2. Test Bed Size : 1,500(W)*3,500(L) mm*1,500 kN
  3. Compression Test Max. Span : 2,000 mm
  4. Bending Test Max. Span : 2,500 mm
250kN UTM
  1. Size : 1,700(W)*4,000(L)*4,640(H) mm
  2. Test Bed Size : 1,500(W)*4,000(L) mm*1,500 kN
  3. Compression Test Max. Span : 2,600 mm
  4. Bending Test Max. Span : 3,000 mm
